Franke
Franke T-Glass Ray 60 FGC 625 XS NP
Franke T-Glass Ray 60 FGC 625 XS NP
Regular price
£247.99 GBP
Regular price
£327.00 GBP
Sale price
£247.99 GBP

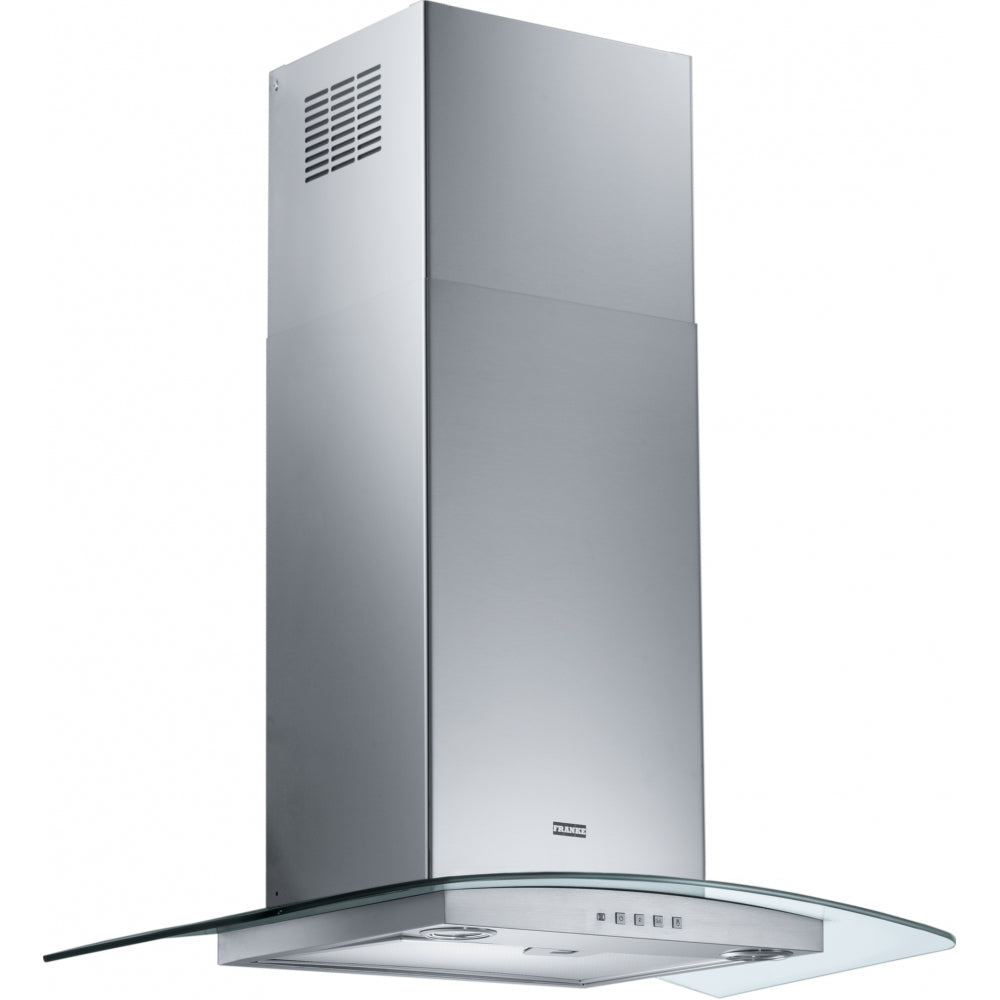

T-Glass Ray 60 FGC 625 XS NP Stainless Steel/Glass, Wall Hood, 60cm wide. Push button controls, 3 speeds plus intensive, 2 x LED Lights. NB Separate Charcoal Filter required if fitting hood in recirculatory mode.
Product Information
Product Information
EAN/UPC 7612985731225
Hood category T-Shape
Finish Stainless steel/glass
Properties
Number of lamp 2
Lamp type Led S1001 4000K
Remote control No
Waterproof No
UI type Push button
Speed number 3+i
Speed setting No
24H No
Delay No
Sensor self start No
WI-FI No
Filter typology Cassette
Type of filter Aluminium
Charcoal filter No

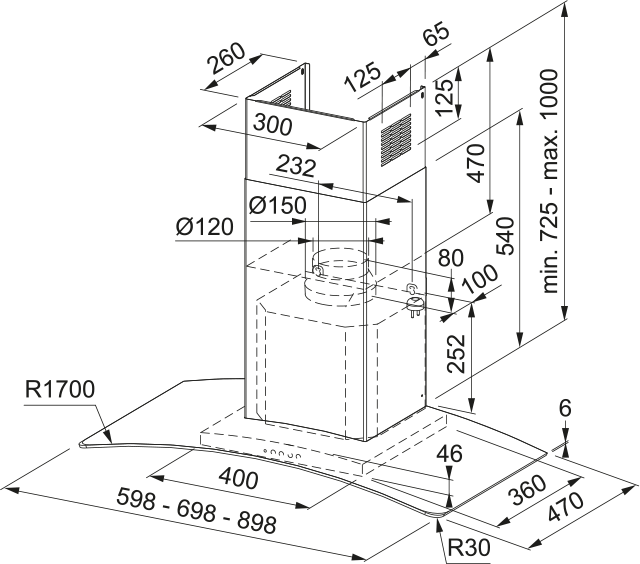

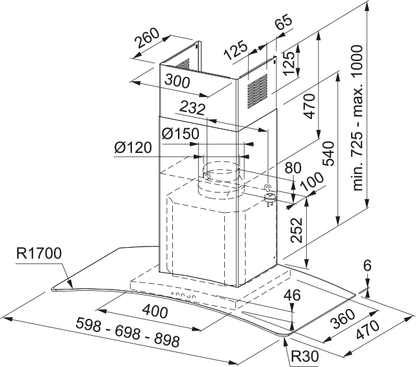

Dimensions
Width in mm 600 mm
Diam. air outlet 150
Installation
Installation Wall
Energy specifications
Plug type No plug
Annual energy consumption AEC 72.3
F. dynamic efficiency class B
Light Efficiency Class A
Grease filtering efficiency cl C
Motor voltage 220-240V 50-60Hz
Motor Gr comm.name SP 800
Number of motor 1
Product Identification
Product brand FRANKE
Product family Smart
Model range T-GLASS CURVED
Dimming Led No
Lower Chimney type Extractor
Upper chimney type Recirculating
Blower tech.name D39
Product specifications
Air quality sensor No
Energy efficiency class B
Non return valve Yes
Back Outlet No
Zero Drip No
Performance
| Speed | 1 | 2 | 3 | BOOST |
| Flow (m³/h) | 300 | 450 | 600 | 700 |
| Press. Max (Pa) | 390 | 470 | 530 | 540 |
| Power (Watt) | 130 | 165 | 210 | 250 |
| Noise level (dBA) | 52 | 61 | 67 | 70 |
