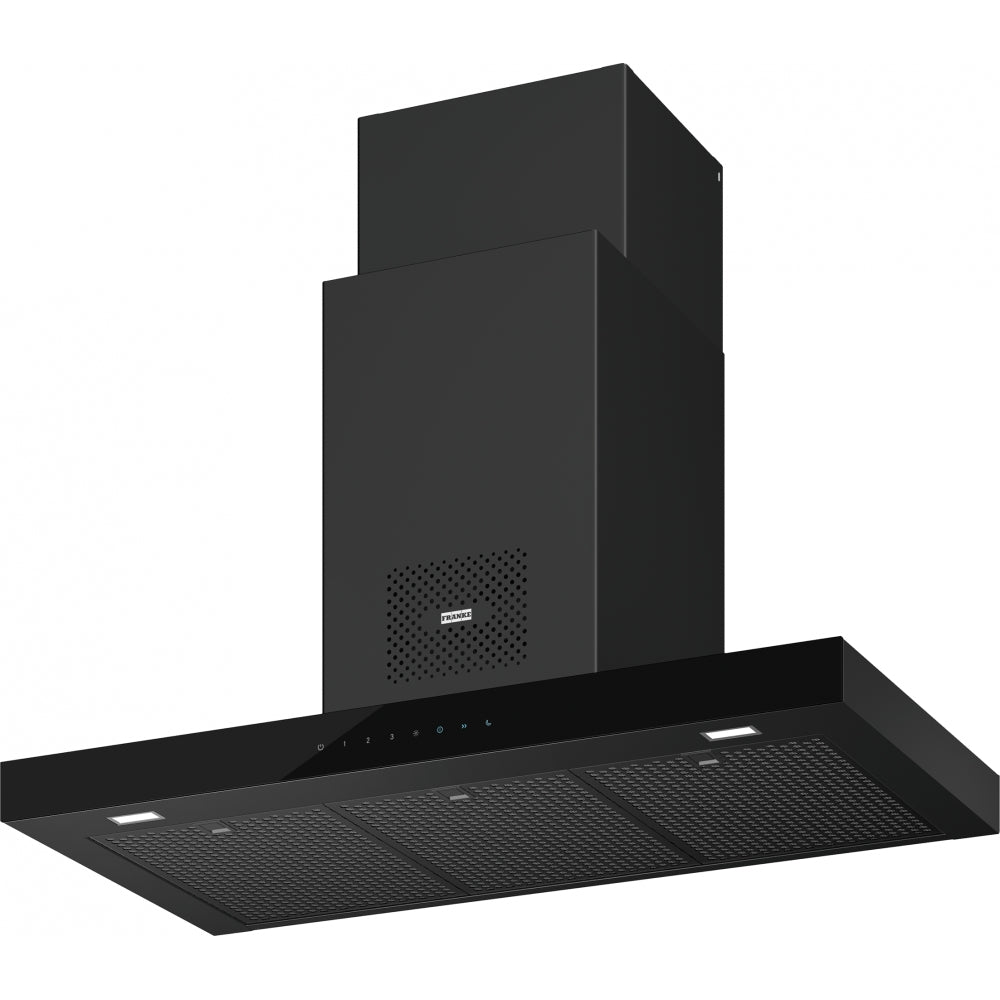

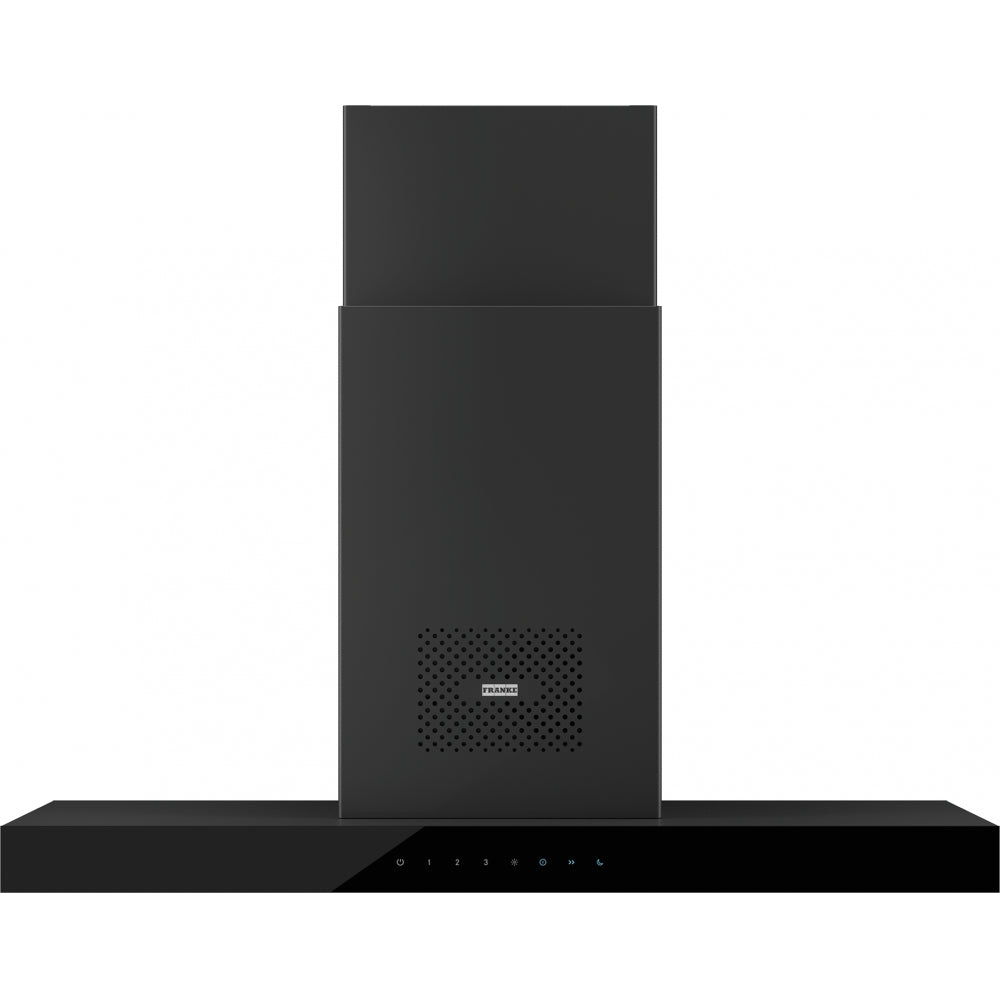

Franke Mythos T-Shape Air Hub FTMY AH BK F90
Franke Mythos T-Shape Air Hub FTMY AH BK F90
Regular price
£812.99 GBP
Regular price
£1,075.00 GBP
Sale price
£812.99 GBP
Mythos T-Shape Air Hub FTMY AH BK MATT F90, Black, Wall Hood, 90cm wide, comes with Chimney Kit, Good energy efficiency A rating, powerful extraction modes - 3 speeds + 1 intensive, Capacitative Touch control, 2 x Fluorescent Lamp. Supplied with Charcoal Filter. Mythos Air Hub removes more than just the lingering odour of food. This integrated system combines a powerful hood with a state-of- the-art air sanitization system. The dedicated UV-C lights abate up to 99.99% of viruses and bacteria from your kitchen, providing you with purer air. Use any of the three modes: manual, intensive and night, to purify your air at a time that suits you best. It may sound like magic, but it’s just technology.
Product Information
Product Information
EAN/UPC 7612986221466
Hood category T-Shape
Finish Extra Matt Black/ Glass
Properties
Number of lamp 2
Lamp type Led S2000 3000K
Remote control No
Waterproof No
UI type Touch capacitive
Speed number See setting file
Speed setting 3+i
24H Timed
Delay Yes 30'
Sensor self start No
WI-FI No
Filter typology Cassette
Type of filter Aluminium
Charcoal filter Yes

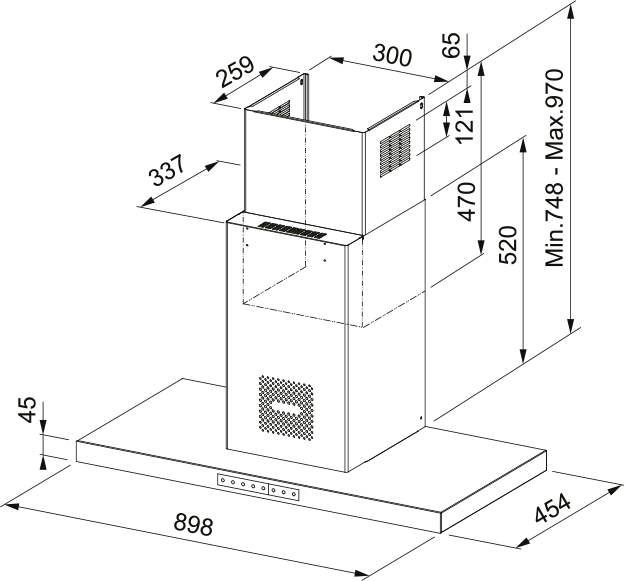

Dimensions
Width in mm 900 mm
Diam. air outlet 150
Installation
Installation Wall
Energy specifications
Plug type Connector
Annual energy consumption AEC 57.5
F. dynamic efficiency class A
Light Efficiency Class A
Grease filtering efficiency cl B
Motor voltage 220-240V 50-60Hz
Motor Gr comm.name SP A+
Number of motor 1
Product Identification
Product brand FRANKE
Product family Mythos
Model range MYTHOS AIR HUB
Dimming Led SEE SETTING FILE
Level dimmer setting NO
Lower Chimney type Extractor
Upper chimney type Recirculating
Blower tech.name D39
Product specifications
Air quality sensor No
Energy efficiency class A
Non return valve Yes
Back Outlet No
Zero Drip No
Performance
| Speed | 1 | 2 | 3 | BOOST |
| Flow (m³/h) | 280 | 410 | 580 | 740 |
| Press. Max (Pa) | 490 | 540 | 580 | 590 |
| Power (Watt) | 150 | 200 | 240 | 250 |
| Noise level (dBA) | 56 | 61 | 68 | 72 |
