Franke

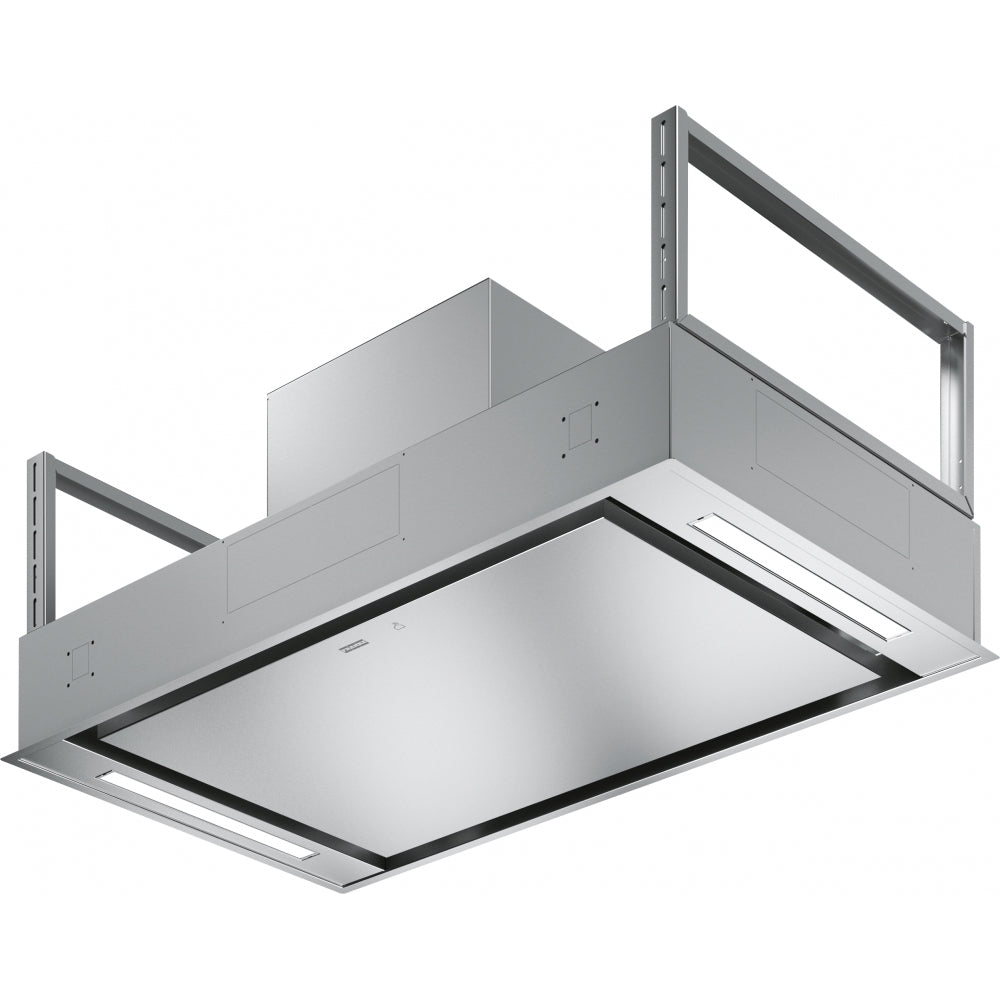

Franke AQ Sense Ceiling FCAS A90 XS
Franke AQ Sense Ceiling FCAS A90 XS
Regular price
£1,299.99 GBP
Regular price
£1,720.00 GBP
Sale price
£1,299.99 GBP
AQ Sense Ceiling FCAS A90 XS, Energy Class. Electronic LED controls. 2 LED bars. Air Quality Sensor, Cloud, Intensive Speed, Remote Control.
Product Information
Product Information
EAN/UPC 7612986089967
Hood category Ceiling
Finish Stainless steel
Properties
Number of lamp 2
Lamp type Led Bar Velo 4000K
Remote control Yes
Waterproof No
UI type Push button
Speed number See setting file
Speed setting 3+i
24H Timed
Delay Yes 30'
Sensor self start Yes
WI-FI Yes
Filter typology Cassette
Type of filter Aluminium
Charcoal filter No

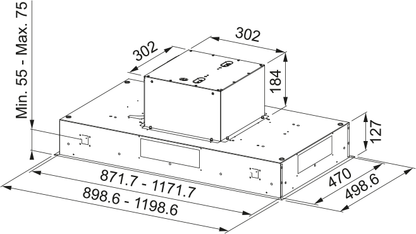

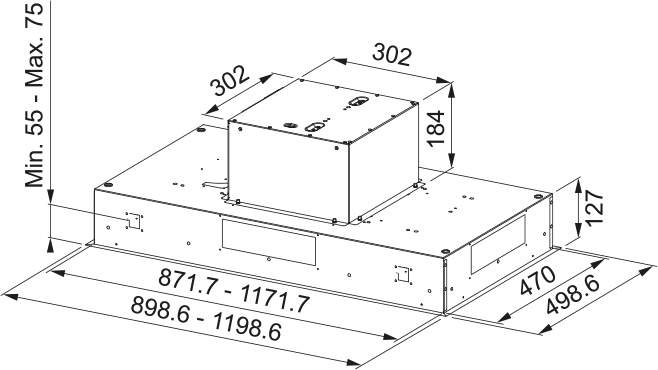

Dimensions
Width in mm 900 mm
Diam. air outlet 150
Installation
Installation Island
Energy specifications
Plug type No plug
Annual energy consumption AEC 59.6
F. dynamic efficiency class A
Light Efficiency Class A
Grease filtering efficiency cl E
Motor voltage 220-240V 50-60Hz
Motor Gr comm.name SP A+
Number of motor 1
Product Identification
Product brand FRANKE
Product family Maris
Model range AQ SENSE
Dimming Led SEE SETTING FILE
Level dimmer setting 2
Lower Chimney type N/P
Upper chimney type N/P
Blower tech.name D39
Product specifications
Air quality sensor Yes
Energy efficiency class A
Non return valve No
Back Outlet No
Zero Drip No
Performance
| Speed | 1 | 2 | 3 | BOOST |
| Flow (m³/h) | 290 | 430 | 610 | 770 |
| Press. Max (Pa) | 460 | 550 | 590 | 600 |
| Power (Watt) | 150 | 200 | 240 | 250 |
| Noise level (dBA) | 48 | 56 | 63 | 68 |
